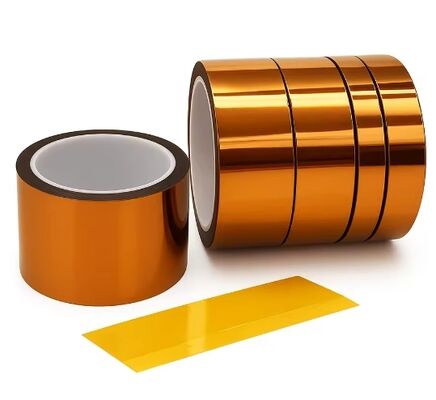

Polyimide Tape is made from high-performance polyimide film coated with heat-resistant silicone adhesive. It offers excellent temperature resistance, electrical insulation, chemical resistance, and dimensional stability. The tape is widely used for PCB masking, electrical insulation, battery insulation, wire wrapping, and other high-temperature industrial applications.

Technical Specifications

Backing Material	Polyimide Film
Adhesive	Silicone Adhesive
Thickness	0.025~0.20mm

Key Advantages

Excellent Temperature Resistance: The polyimide film and silicone adhesive provide reliable performance in high-temperature applications.
Reliable Electrical Insulation: Provides excellent dielectric insulation for wires, coils, circuit boards, batteries, and electrical components.
Good Chemical Resistance: Offers good resistance to many chemicals while maintaining dimensional stability during processing and operation.

Applications

Electronics and PCB Manufacturing: Used for PCB masking, soldering protection, and electronic component protection.
Electrical and Battery Insulation: Suitable for wire wrapping, coil insulation, transformer insulation, motor insulation, and battery applications.
High-Temperature Industrial Processing: Used for high-temperature masking, surface protection, fixing, and insulation during industrial manufacturing.

Frequently Asked Questions

What is Polyimide Tape used for?

It is commonly used for electrical insulation, PCB masking, battery insulation, wire wrapping, and high-temperature industrial applications.

Is Polyimide Tape suitable for high-temperature applications?

Yes. Polyimide film offers excellent thermal stability. The actual operating temperature depends on the specific product grade and adhesive system.

Clasificaciones y revisión

Calificación general

5.0

Basado en 50 reseñas para este proveedor

Imagen de calificación

La siguiente es la distribución de todas las calificaciones

5 estrellas

100%

4 estrellas

3 estrellas

2 estrellas

1 estrellas

Todas las reseñas

Luca

Italy Mar 5.2026

Es muy útil. (1)

They offer a wide variety of tapes, so you can get everything you need in one place.

Anil

India Jan 23.2026

Es muy útil. (1)

Thanks to UN.Tex for recommending the models I needed. They're diligent and responsible.

F*z

Saudi Arabia Oct 23.2025

Es muy útil. (1)

UN.Tex's tape is really good quality, so you can totally trust both their products and their supply.

Etiquetas:

cinta adhesiva de la película del Polyimide 25um,

Grado de la cinta adhesiva H de la película del Polyimide,

Cinta da alta temperatura del solo polyimide revestido lateral

Productos recomendados

Aislamiento de alta temperatura cortado con tintas de la cinta del silicón del Polyimide del ESD

Contactar ahora

Cinta adhesiva 25um 60um de la película del Polyimide del aislamiento de calor

Contactar ahora

Cinta adhesiva 25um 60um del alto Polyimide mecánico de la fuerza

Contactar ahora

Cinta adhesiva Amber Transparent de la sola película revestida lateral del Polyimide

Contactar ahora

Cinta da alta temperatura del solo Polyimide revestido lateral del grado de H

Contactar ahora

Lado cortado con tintas del grado de la cinta adhesiva H de la película del Polyimide el solo no cubrió ninguna liberación

Contactar ahora

Cinta echada a un lado doble resistente da alta temperatura 25um del Polyimide

Contactar ahora

DETALLES DE LOS PRODUCTOS

Productos

Cinta adhesiva del aislamiento

Cinta del aislamiento del paño de cristal

Cinta a prueba de calor del aislamiento

Cinta adhesiva del paño de cristal

Cinta adhesiva de la película del Polyimide

Cinta adhesiva del papel de aluminio

Cinta del paño de vidrio del papel de aluminio

La hoja hizo frente al papel de Kraft

Paño de la fibra de vidrio del papel de aluminio

Cinta del lienzo ligero de la hoja

Cinta aislante del paño

Cinta adhesiva echada a un lado doble

Cinta adhesiva del ANIMAL DOMÉSTICO

Bastidor de inversión de la precisión

Panel de aislamiento eléctrico

High Temperature Polyimide Tape For Electrical Insulation

Precio:	based on size and quantity
Embalaje Estándar:	Cartones y paletas
Período De Entrega:	Cerca de 20 días
Método De Pago:	T/T

Información detallada

Descripción del Producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

UNTEX

Documento

UN_TEX - 251 PI silicone ad...pe.pdf

Material de respaldo:

Película del Polyimide

Adhesivo:

Adhesivo de silicona

Color:

Ámbar

Espesor:

0,025~0,20 mm

fuerza de pelado:

2,6 N/10 mm

Resistencia a la tracción:

45~74 N/10 mm

Alargamiento:

50%

Temperatura. Rango:

-73~300℃

Precio:

based on size and quantity

Detalles de empaquetado:

Cartones y paletas

Tiempo de entrega:

Cerca de 20 días

Condiciones de pago:

T/T

Descripción del Producto

High Temperature Polyimide Tape for Electrical Insulation

Technical Specifications

Backing Material	Polyimide Film
Adhesive	Silicone Adhesive
Thickness	0.025~0.20mm

Key Advantages

Excellent Temperature Resistance: The polyimide film and silicone adhesive provide reliable performance in high-temperature applications.
Reliable Electrical Insulation: Provides excellent dielectric insulation for wires, coils, circuit boards, batteries, and electrical components.
Good Chemical Resistance: Offers good resistance to many chemicals while maintaining dimensional stability during processing and operation.

Applications

Electronics and PCB Manufacturing: Used for PCB masking, soldering protection, and electronic component protection.
Electrical and Battery Insulation: Suitable for wire wrapping, coil insulation, transformer insulation, motor insulation, and battery applications.
High-Temperature Industrial Processing: Used for high-temperature masking, surface protection, fixing, and insulation during industrial manufacturing.

Frequently Asked Questions

What is Polyimide Tape used for?

It is commonly used for electrical insulation, PCB masking, battery insulation, wire wrapping, and high-temperature industrial applications.

Is Polyimide Tape suitable for high-temperature applications?

Yes. Polyimide film offers excellent thermal stability. The actual operating temperature depends on the specific product grade and adhesive system.
