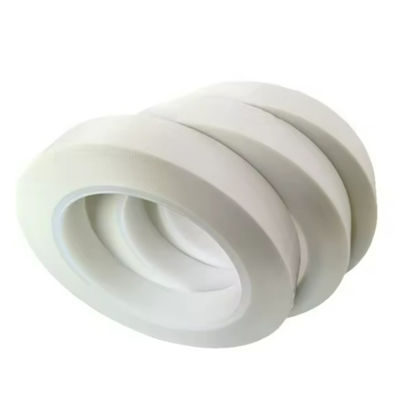

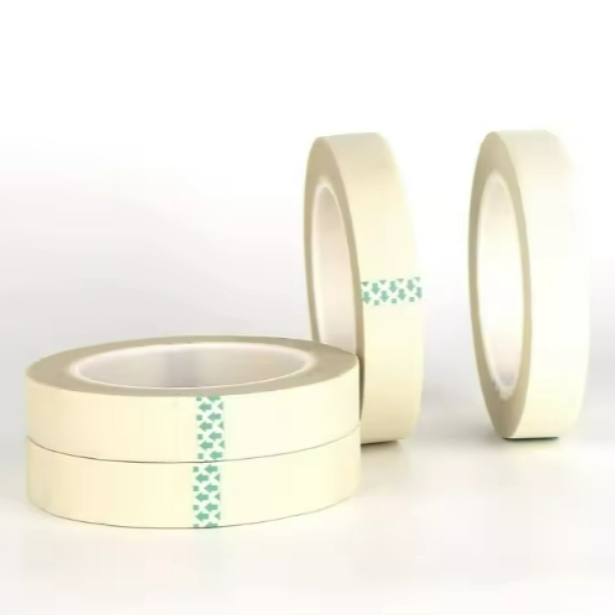

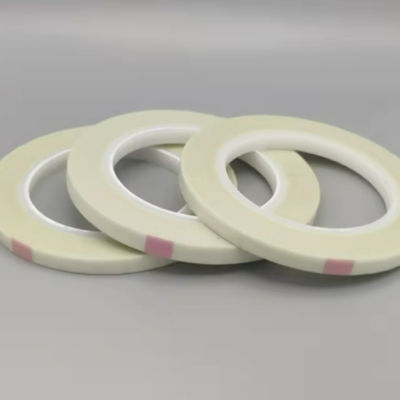

White Silicone Adhesive Tape 180 um Thickness For Electrical Insulation

Product Description:

Flammability White Adhesive Insulation Tape: Engineered for Demanding Industrial Environments.

• Core Construction: E-grade fiberglass cloth backing + high-performance silicone adhesive
• Key Properties: Exceptional electrical insulation, high mechanical strength, outstanding heat resistance
• Typical Applications: Ideal for insulation and wrapping in motors, transformers, and various high-temperature scenarios
• Quality Assurance: Delivers durable, stable performance even under extreme conditions

Advantages:

• Excellent Heat Resistance and Safety Protection
  Maintains stable performance in high-temperature environments up to 180°C, effectively inhibiting flame spread to ensure equipment and personnel safety.
• Robust Structure and Insulation Assurance
  With high breakdown voltage (≥2.5kV) and strong tensile resistance (≥210N/10mm), it ensures reliable insulation and physical durability under demanding working conditions.
• Stable Adhesion and Long-Term Sealing
  Offers strong adhesion to steel substrates (≥3.8N/10mm), maintains adhesive stability even at high temperatures, and provides a shelf life of up to 12 months under normal storage conditions.

Technical Parameters:

Applications:

• Insulation for High-End Motors and Transformers

1. Designed for Class H insulation systems, maintaining stable performance at 180°C
2. Prevents short circuits caused by insulation aging, ensuring long-term safe operation of equipment

• Battery System Safety Solutions

1. Forms multiple protective barriers through tight wrapping, significantly enhancing battery safety
2. Special substrate and adhesive layer structure reliably prevents electrolyte leakage and thermal runaway

• Protection for High-Temperature Industrial Environments

1. Excellent thermal insulation and mechanical strength provide reliable protection for critical components
2. Effectively isolates heat sources and prevents equipment damage, significantly extending service life
