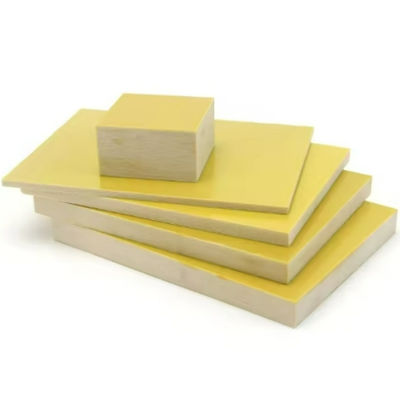

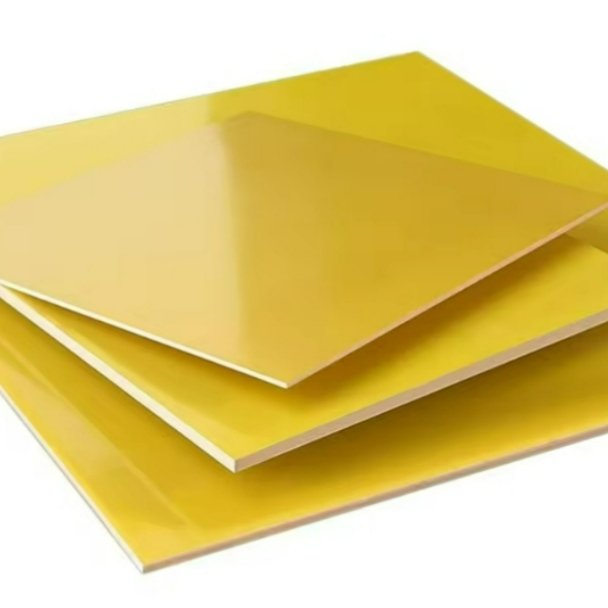

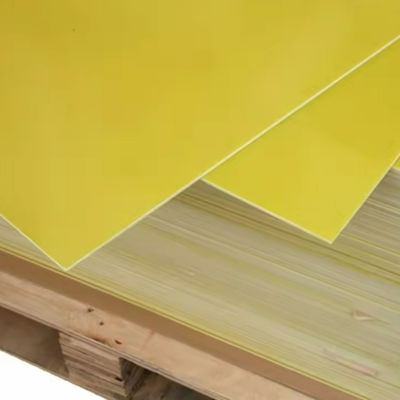

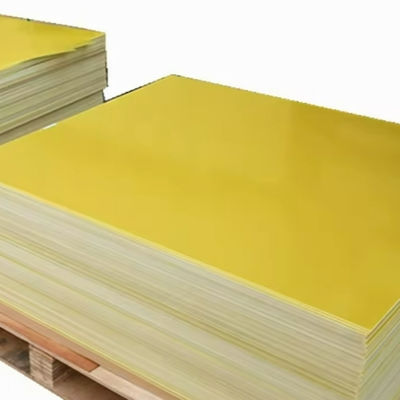

Electrical Insulation Board With Phenolic Epoxy Resin For Electrical Applications

Cantidad Mínima De Pedido:	1000 kgs
Precio:	basing on size and quantity
Embalaje Estándar:	PALETA
Período De Entrega:	30 días laborables
Método De Pago:	T/T
Capacidad De Suministro:	200000 kg por mes

Información detallada

Descripción del Producto

Información detallada

Lugar de origen

Porcelana

Número de modelo

Material:

Resina epoxi fenólica y fibra de vidrio

Tamaño:

102 X 202 cm / 102 X 122 cm / 122 X 204 cm / 122 X 244 cm

Espesor:

0,2-101,6 mm

densidad:

1.8-2,0 g/cm3

Indice de tiempo:

120 ℃

Inflamabilidad:

media pensión

Tasa de absorción de agua:

≤0.5%

Resistencia a la tracción:

≥ 200 MPa

Resistencia de aislamiento (normal):

≥5,0×10^12 Ω

Solicitud:

Aplicable a campos mecánicos, eléctricos, electrónicos y otros.

Resaltar:

phenolic epoxy insulation board

electrical insulation board with resin

insulation board for electrical applications

Descripción del Producto

Product Description:

The Phenolic Epoxy class fiber laminate 3240 is an electrical purposed alkali-free reinforced laminate bonded with phenolic epoxy resin, specifically designed for electrical applications. With a Class B thermal stability rating, it offers excellent mechanical and dielectric properties. This material is widely used in electrical and electronic fields for fabricating insulating components and structural parts in equipment. It is also suitable for use in demanding environments, including high humidity and transformer oil.

Advantages:

Excellent Dielectric Strength: High electric strength perpendicular to laminations ( ≥14.2 kV/mm at 90°C in oil, 1 mm in thickness), ensuring reliable insulation protection and effective resistance to breakdown, even under demanding conditions.
Stable Dielectric Properties: A low relative permittivity (≤5.5 at 50Hz), which helps minimize dielectric losses in equipment and contributes to enhanced operational efficiency and stability.
Dense and Robust Structure: High material density (≥1.8 g/cm³) provides superior mechanical durability and strength, making it suitable for demanding applications that require long service life.
Superior Surface Quality: The smooth and virtually defect-free surface ensures ease of installation, prevents performance issues such as partial discharges caused by surface imperfections, and guarantees consistent product quality.

Technical Parameters:

Attribute	Value
Color	Yellow
Shape	Board
Surface	Smooth/no Significant Defect
Density	≥1.8g/cm3
Water Absorption	≤0.5%
Tensile strength (MD)	≥200MPa
Compressive strength	≥350MPa
Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness	≥14.2kV/mm
Parallel breakdown voltage(at 90℃±2℃ in oil)	≥35kV
Relative permittivity(50Hz)	≤5.5
Insulation Resistance (Normal)	≥5.0×10^12 Ω
Temp. Index	120℃
Flammability	HB

Applications:

Transformers: Ideal for internal insulation due to high breakdown voltage (>35kV parallel, in oil) and superior perpendicular electric strength.
Switchgear & Distribution Systems: Offers mechanical durability and impact resistance for safe, reliable operation in high-strength applications.
Electrical Panels & Busbar Supports: Provides stable dielectric properties (≤5.5 at 50Hz) for insulating components, ensuring power distribution stability.

Electrical Insulation Board With Phenolic Epoxy Resin For Electrical Applications 0
