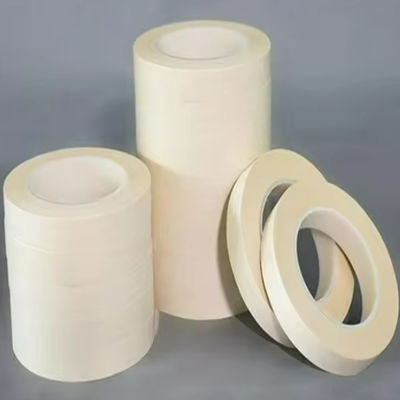

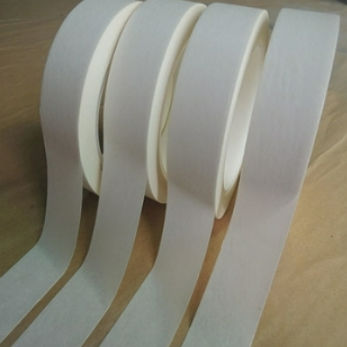

High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

Cantidad Mínima De Pedido:	500 sq.m
Precio:	basing on size and quantity
Embalaje Estándar:	Cartón
Período De Entrega:	unos 30 días
Método De Pago:	Tt, t/t
Capacidad De Suministro:	20000 rodillos

Información detallada

Descripción del Producto

Calificaciones y reseñas

Información detallada

Lugar de origen

PORCELANA

Nombre de la marca

Aramid paper adhesive tape

Certificación

Número de modelo

432

Alargamiento:

Ancho:

10 ~ 980 mm

Longitud:

50m o según el pedido

Resistencia adhesiva al acero:

12N/25m m

Color:

Blanco

Nombre del producto:

Cintas adhesivas de papel de aramida a alta temperatura

Grosor total:

0.105m m

Solicitud:

Envase de extremo de bobina del motor y del transformador de clase F

Material:

papel de aramida

Resaltar:

0.105mm Thickness Aramid Paper Adhesive Tape

12N/25mm Adhesive Strength Electrical Insulation Tape

155℃ Temperature Range Nomex Adhesive Tape

Descripción del Producto

Aramid Paper Adhesive Tape With Acrylic Pressure Sensitive Adhesive White Electrical Insulation Tape

The Aramid Paper Adhesive Tape is a high-performance industrial tape featuring a unique substrate made from heat-resistant meta-aramid fibers, combined with a durable acrylic pressure-sensitive adhesive. This combination results in a lightweight, flexible tape that delivers exceptional electrical insulation, flame retardancy, and mechanical strength, suitable for use in extreme temperature and demanding industrial environments.

Technical Parameters

Parameter	Value
Elongation	4%
Adhesive	Flame Retardant Acrylic Pressure Sensitive Adhesive
Length	50m Or As Per Order
Width	10~980mm
Adhesive Strength to steel	12N/25mm
Tensile Strength	≥30N/10mm
Color	White
Application	F-class Motor And Transformer Coil End Wrapping
Material	Aramid Paper (similar To Nomex Paper)
Temperature Range	-55~155℃

Key Advantages

Exceptional Heat Resistance & Flame Retardancy: Offers exceptional thermal stability and flame retardancy, withstands temperatures up to 155℃ (311℉). Ideal for electrical insulation, motor winding, and transformer applications.
Excellent Electrical Insulation: Offers high dielectric strength, providing reliable insulation in high-voltage applications such as motors and transformers.
High Mechanical Strength & Durability: The aramid fibers impart high tensile and tear resistance, making the tape abrasion and puncture-resistant for reliable mechanical protection.
Good Flexibility: The tape is soft and pliable, allowing for easy wrapping, die-cutting, and conforming to complex shapes.
Resistance to Chemicals and Radiation: Exhibits good resistance to many chemicals, oils, and coolants, as well as some level of radiation, suiting it for harsh environments.

Applications

Electrical Motors & Insulation: Used for layer, slot, phase, and end-wedge insulation in electric motors, transformers, and generators.
Aerospace & Rail Transportation: Used for wire harnessing, insulation protection, and fireproofing in aircraft and high-speed trains.
Electronics Industry: Used for insulating and fixing flexible printed circuits (FPCs) and lithium-ion batteries, and as a mask during high-temperature soldering.
Industrial Protection & Composites: Serves as a protective wrap for high-temperature pipes and hoses. Can also be used as a release or separation layer in composite manufacturing.

The Aramid Paper Adhesive Tape, Model 432, delivers reliable performance and efficient insulation for your applications. Procurement is straightforward, with a standard delivery time of approximately 30 days and simple payment via Telegraphic Transfer (TT).
